Kippertie Strara PL

Rock solid for great projects and great lenses.

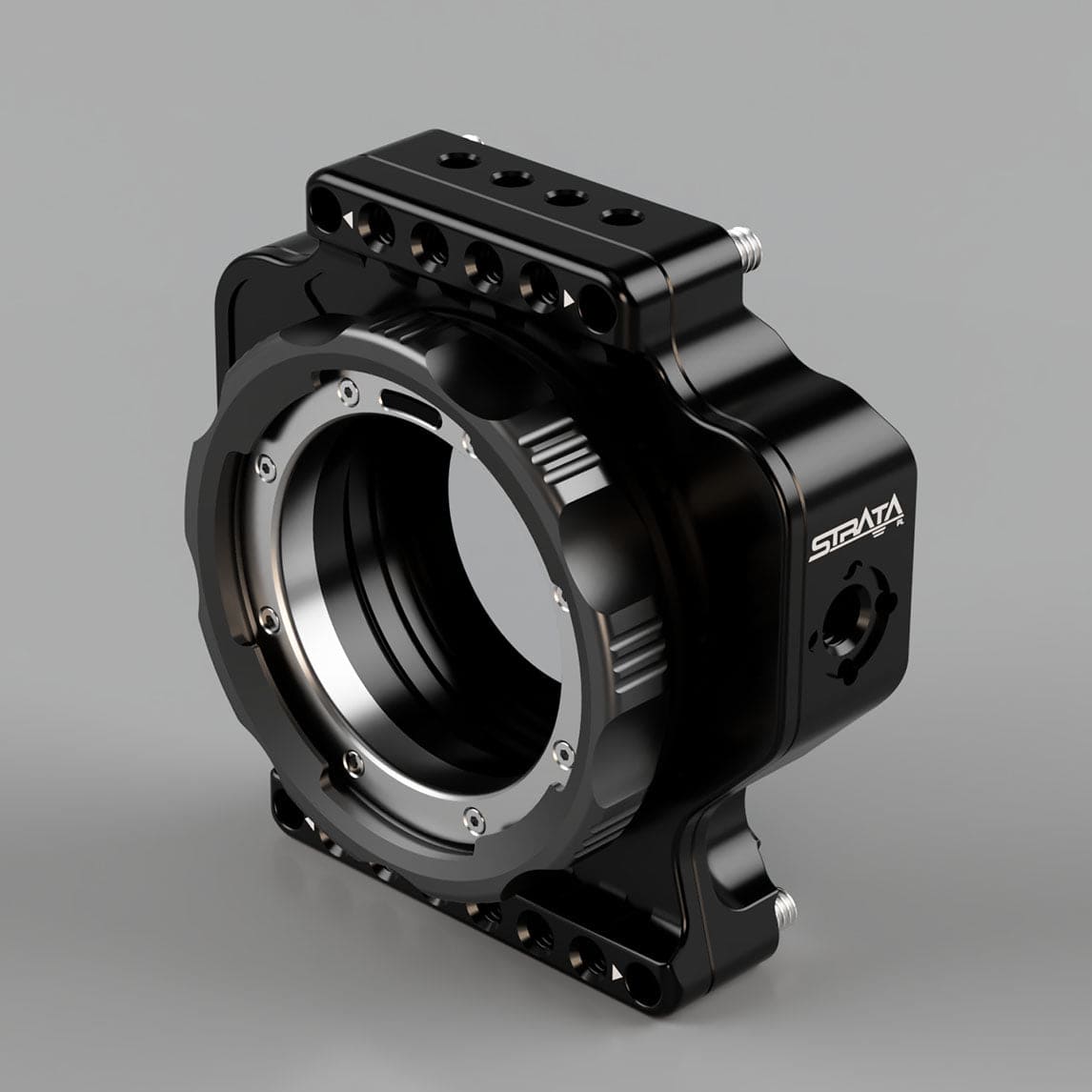

Strata-PL is designed with top end users in mind. In fast-paced professional environments with appropriate cameras installed. Friendly but sturdy enough to support any lens without ever putting any stress on the lightweight RF mount.

The Strata brings the expected charging friendly design and bulletproof look to the V-Raptor. With optical baffles and flare traps for optimal performance, the Strata is specially designed for the unique V-Raptor sensor and body.

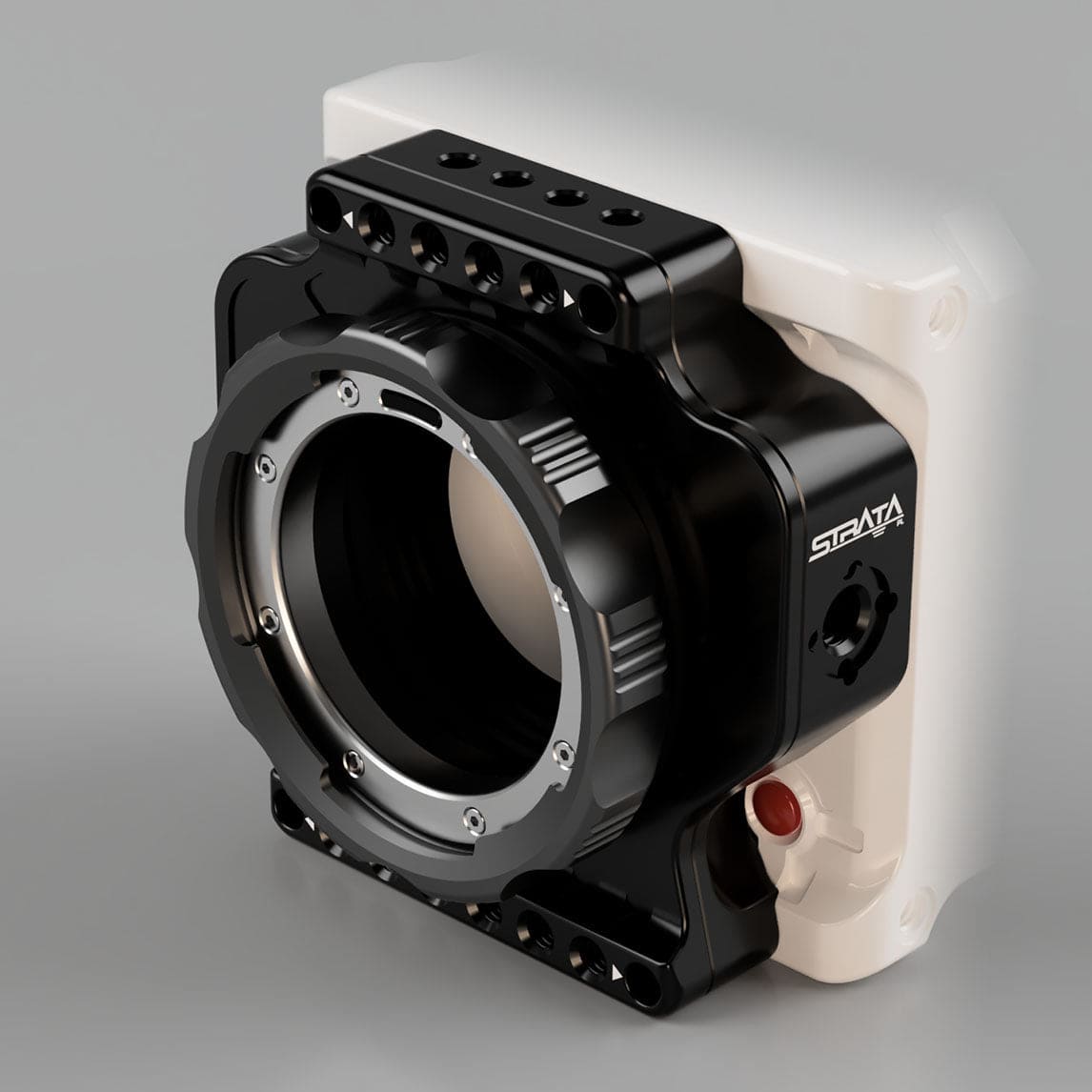

The profile and aesthetic of the mount matches the camera body with no interference from other accessories. Several 1/4-20 mounting points are provided, and each side has heavy duty 3/8-16 mounts with standard anti-rotational sockets, ideal for handheld or monitor mounting

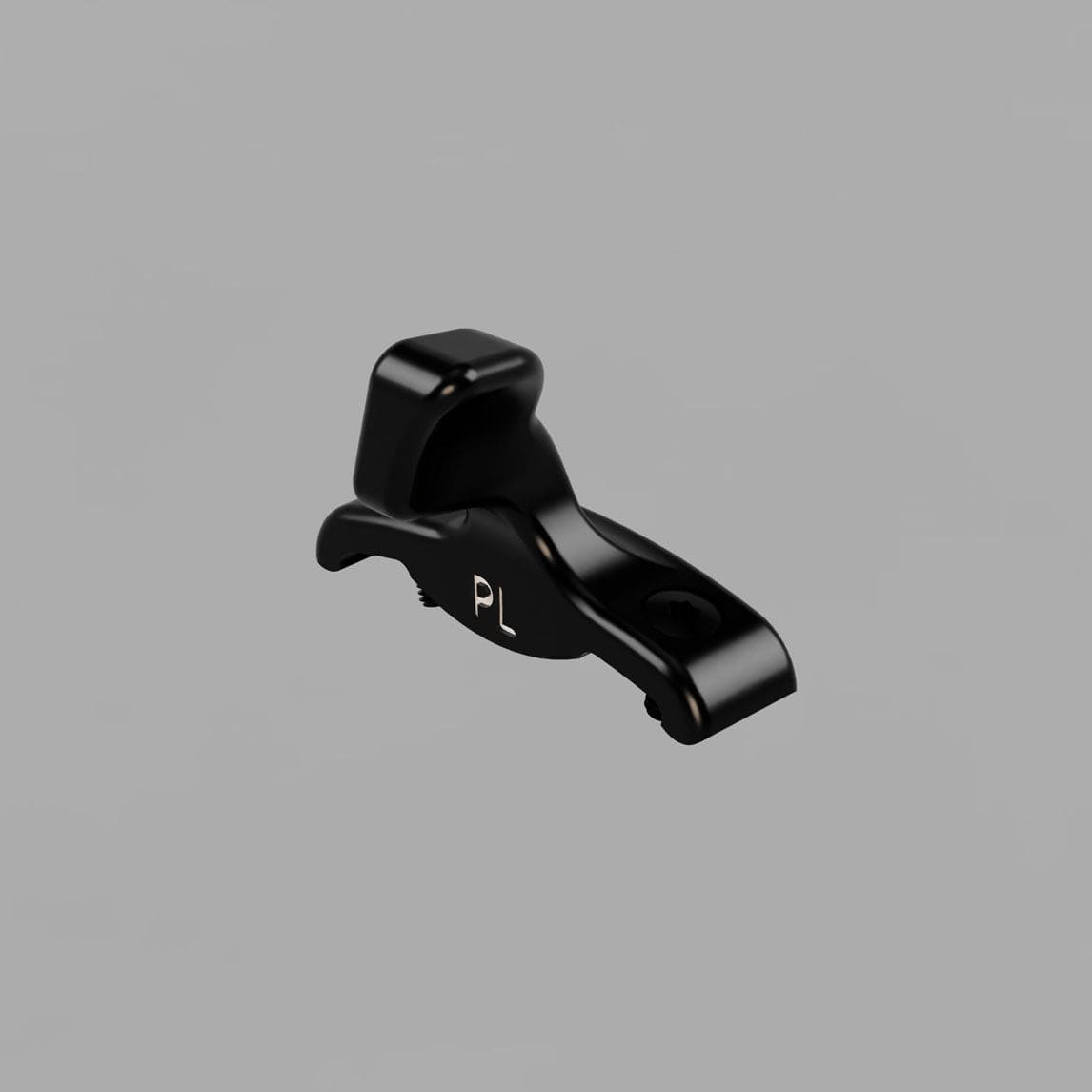

The grip PL mounting ring can be optionally sized with two grip tabs, each of which can be attached with selectable user-friendly locations

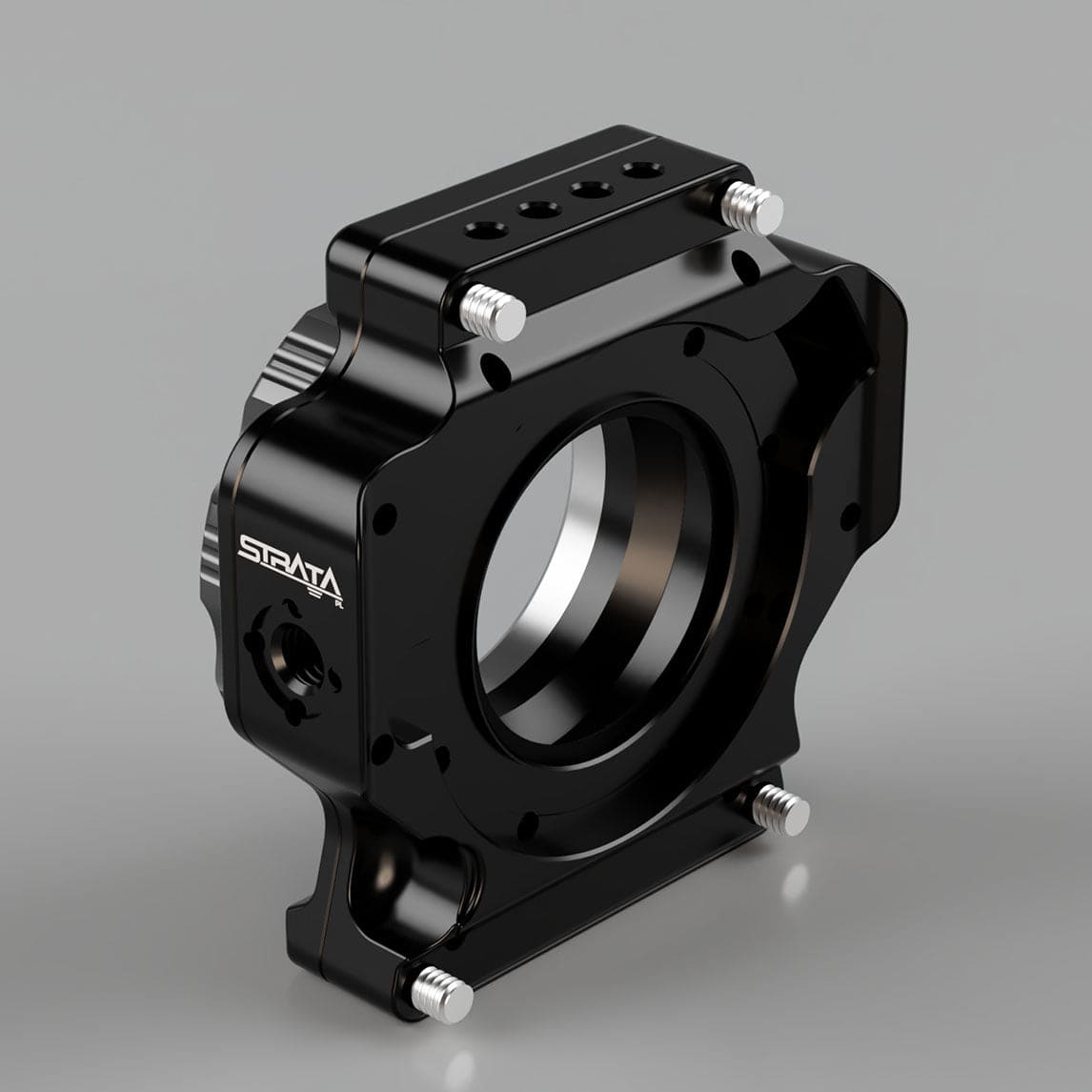

Mounting is done directly on the V-Raptor front accessory mounting points using four captive 1/4-20 stainless steel screws. The RF mount is used solely as a point of reference and rear view, completely eliminating the problems of a spring bayonet designed for small stills lenses

The Strata-PL is pre-shimed for nominal backfocus, and is supplied with additional shims for professional adjustments. We use and recommend Denz FDC-multi for measurement accuracy, and expect our diligent users to verify their installation before firing.
