Kippertie Strata LPL

Rock strong for huge productions and huge lenses.

Strata-LPL is designed with pinnacle level users in mind. For rapid moving professional environments with substantial digital camera builds. Tough sufficient to assist any lens while by no means passing any pressure to the pleasant however mild-duty RF mount.

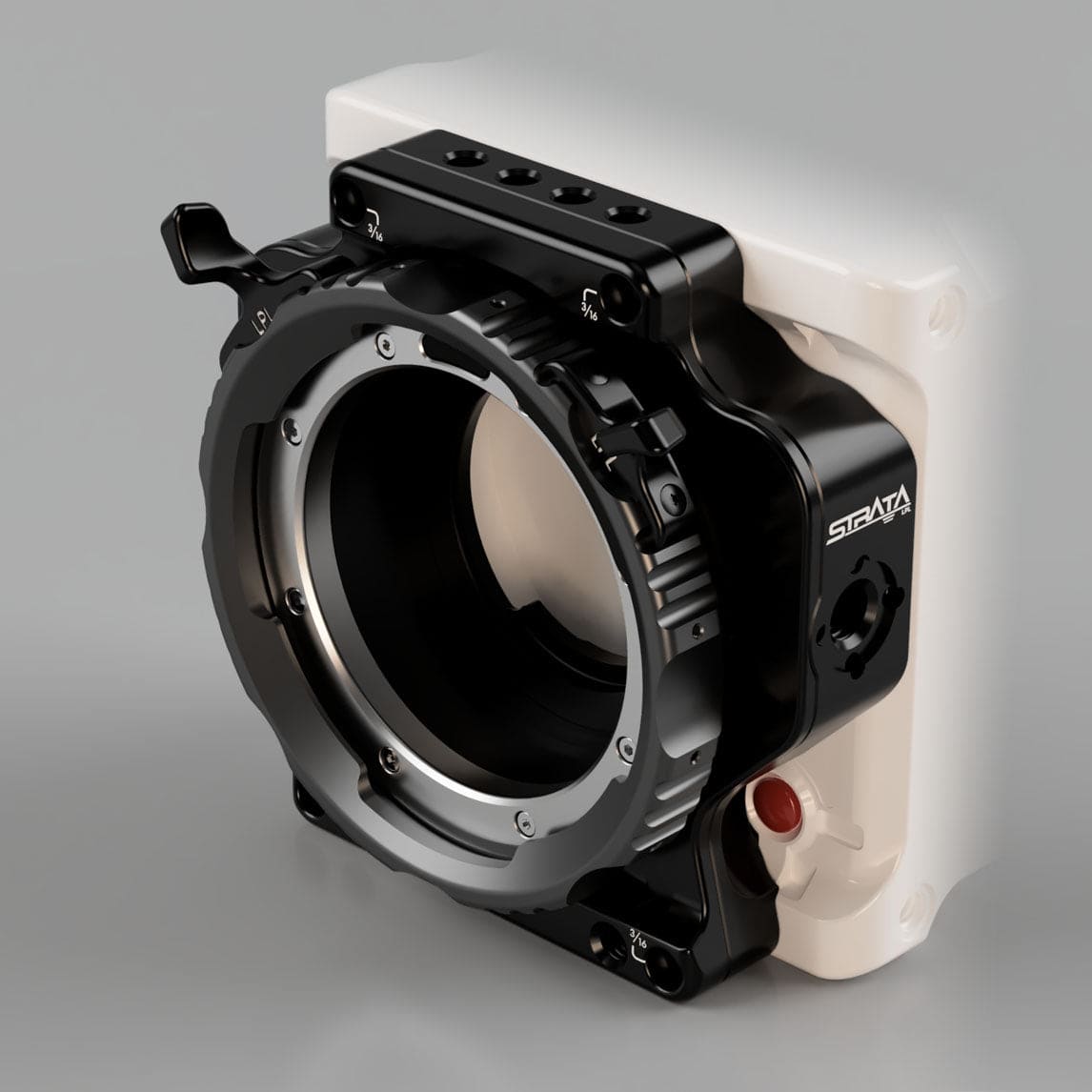

Strata brings the predicted rental-pleasant design and bulletproof simplicity to V-Raptor. With optical baffles and flare traps for most effective performance, Strata is tailored with precise regard to the precise V-Raptor sensor and body.

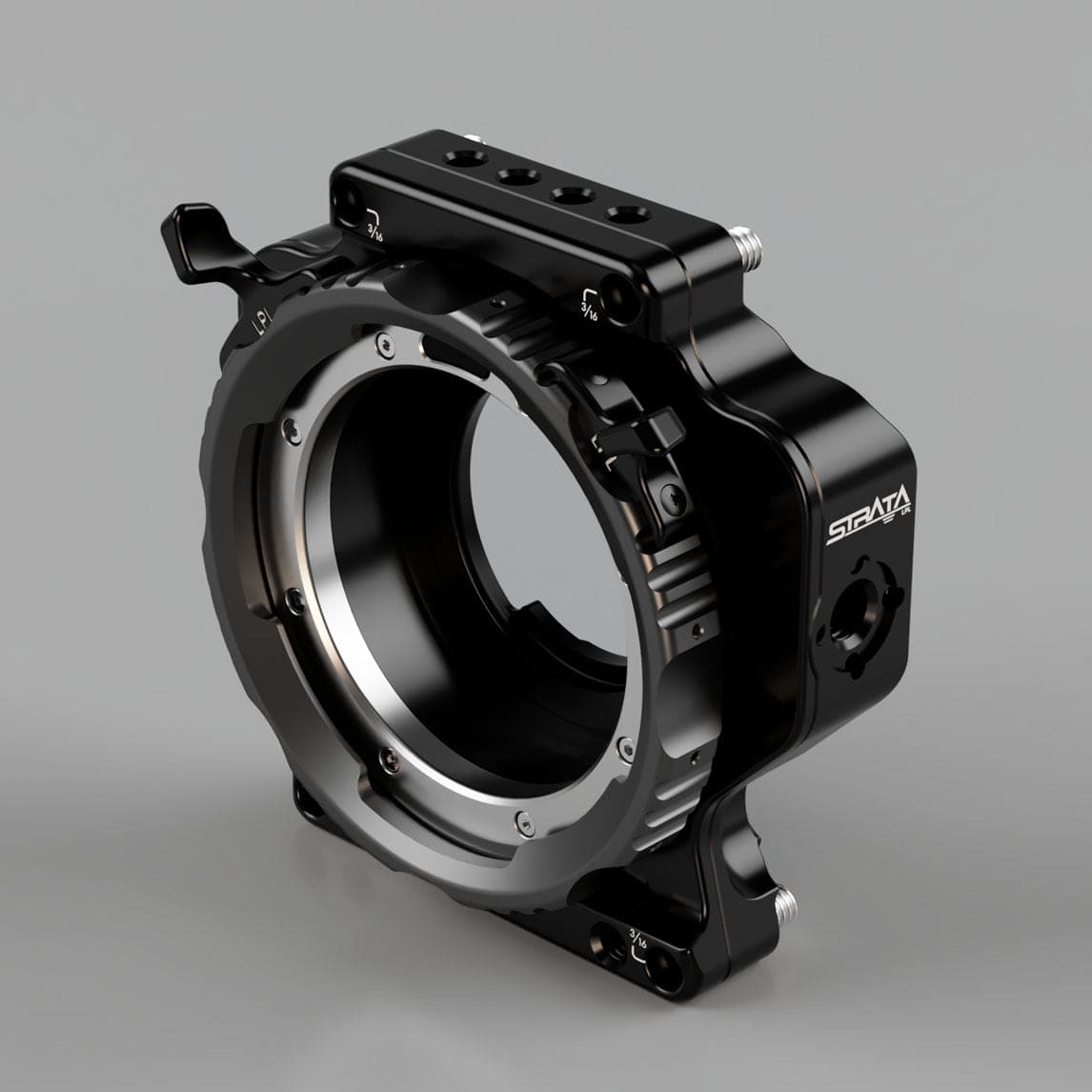

The profile and aesthetic of the mount is matched to the digicam frame and not using a obstructions to other add-ons. Multiple 1/4-20 mounting factors are furnished, and every side capabilities a heavy obligation three/eight-16 mount with trendy anti-rotation sockets, ideal for handles or monitor mounts.

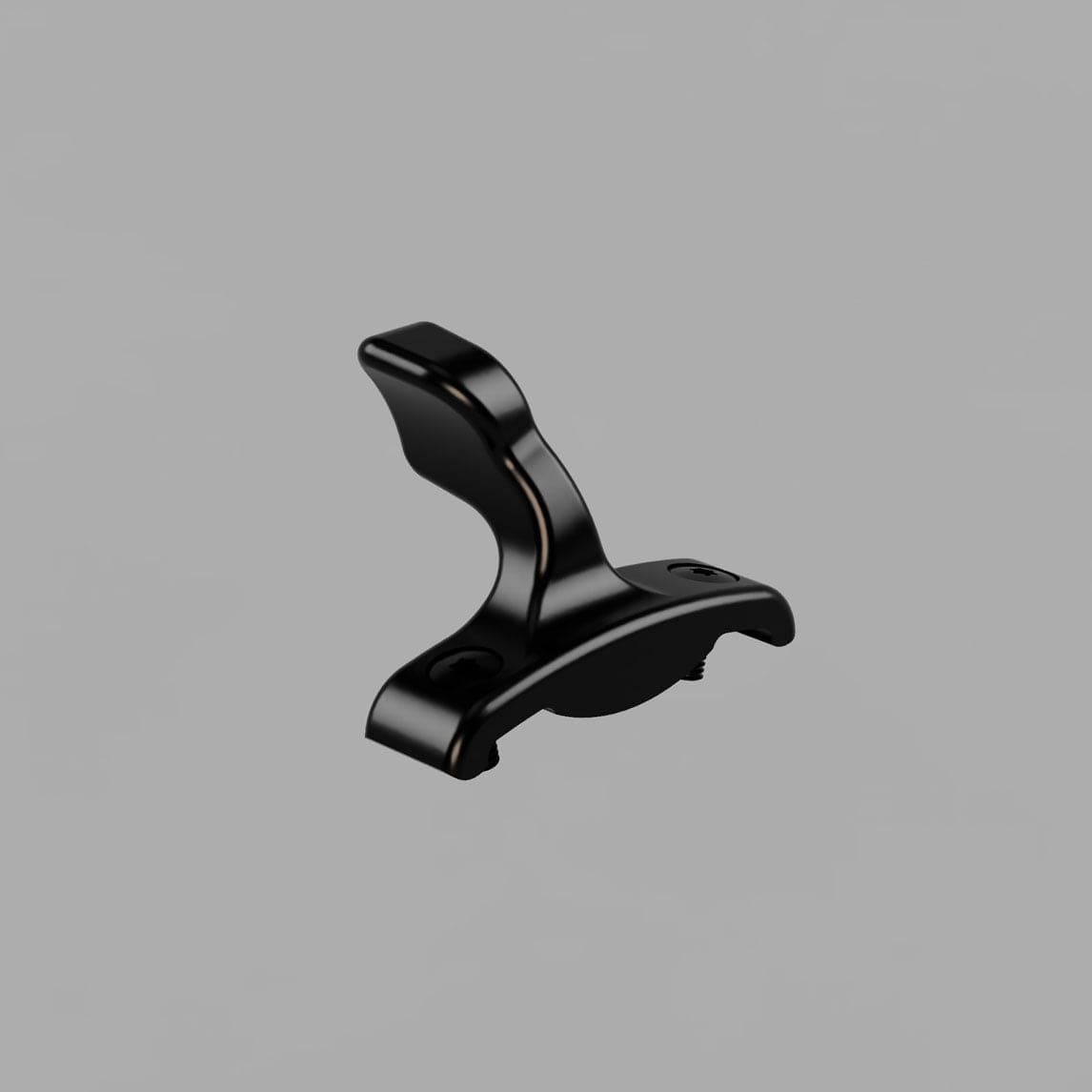

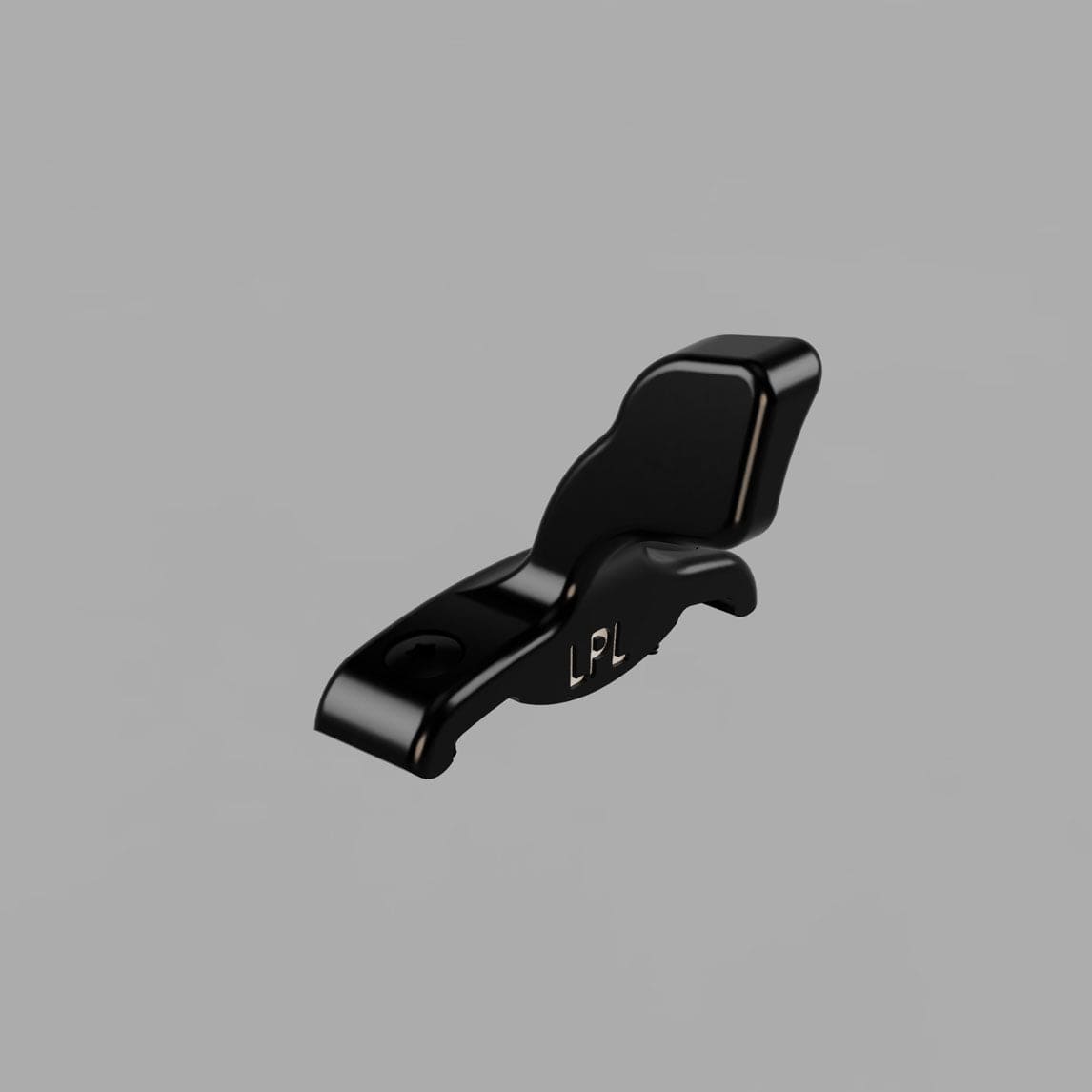

The rugged fastening ring is augmented with dual assymetrical tabs for additonal grip, every of which may be re-positioned or removed as favored.

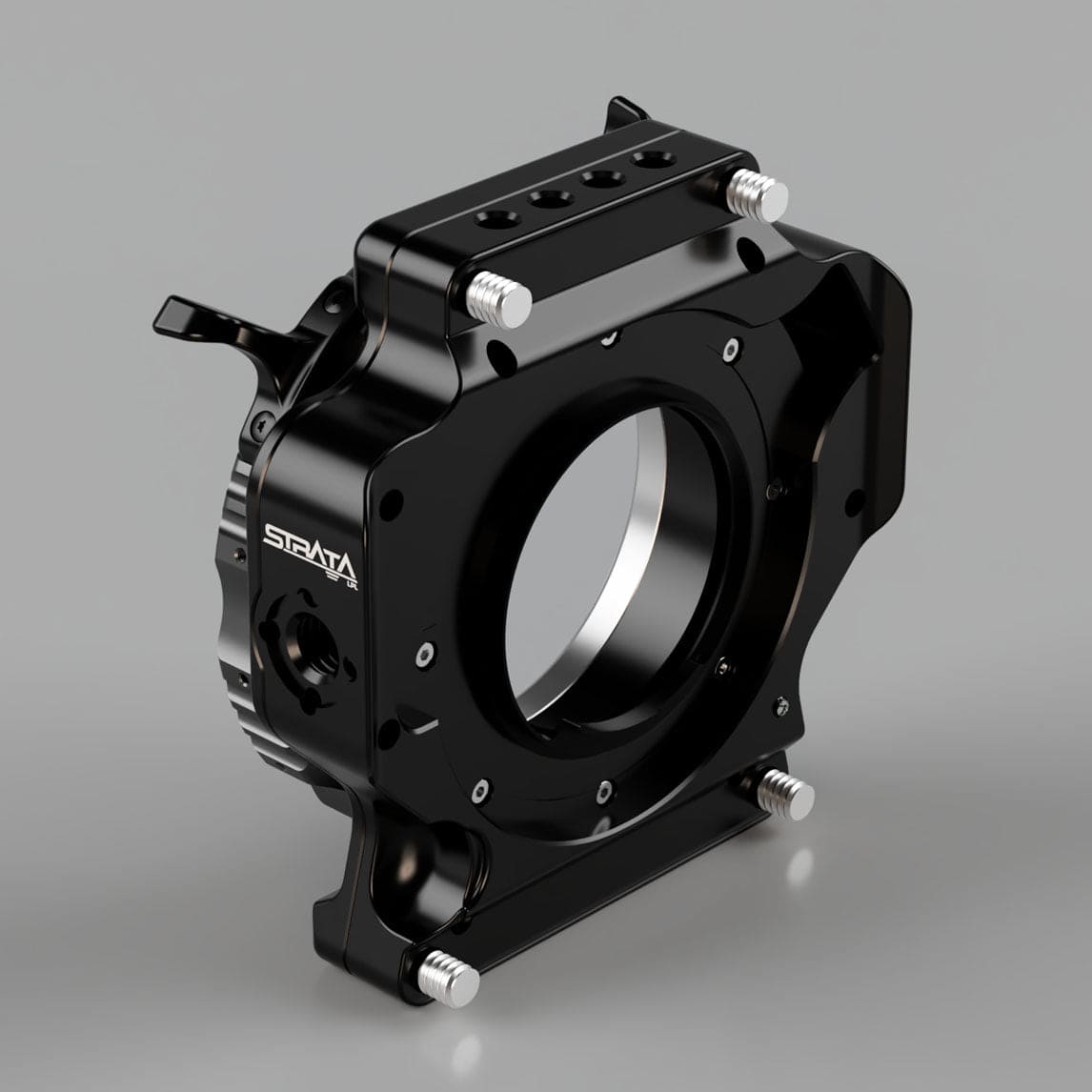

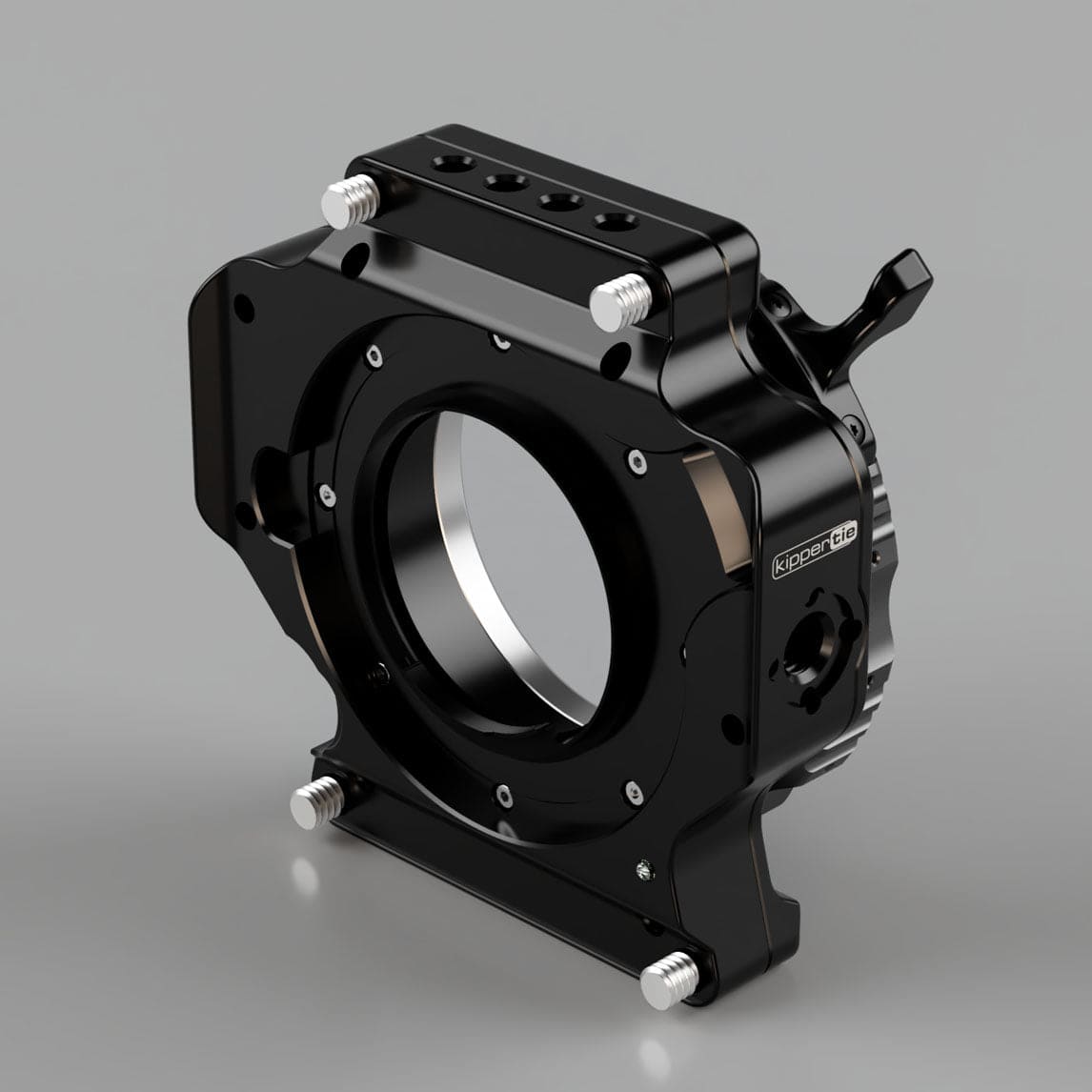

Mounting is by means of four captive 1/four-20 stainless-steel screws direct to the V-Raptor front accent mounting factors. The RF mount is used best as a reference floor for function and backfocus, eliminating totally the troubles inherent to a sprung bayonet designed for small stills lenses.

Strata-LPL is pre-shimmed for nominal backfocus, and provided with further shims for expert adjustment. We use and endorse the Denz FDC-multi for precision size, and we anticipate that our diligent customers will confirm their installation prior to shooting.

Strata mounts are shipped in a reusable cardboard storage box with custom cut shielding foam lining, and magnetic capture.
