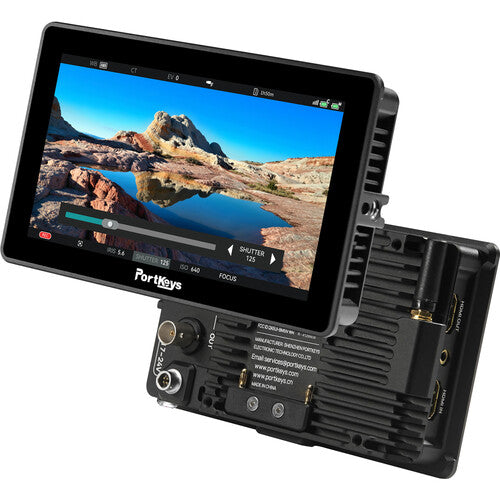

PORTKEYS BM5IV WR 5.5" HDMI/SDI Touchscreen Monitor with Camera Control

Use the PORTKEYS BM5IV WR 5.5" HDMI/SDI Touchscreen Monitor and its wired and wireless camera control options to monitor your image and focus accurately, no matter if you're shooting on location or in the studio. This ultrabright 2000 cd/m² onboard monitor features a wide color gamut, a durable aluminum build, and both HDMI and 3G-SDI video inputs and outputs. It supports HDMI/SDI signal conversion and can output 3D LUTs via its SDI output port. Wired control is available for select RED, Sony, Blackmagic Design, Canon, Panasonic, and Z CAM cameras, as well as the Tilta Nucleus-M wireless lens motors. Wireless 2.4 GHz signals allow control over compatible RED, ARRI, Nikon, Sony, Canon, and Panasonic models.

The V4 firmware update adds a plethora of new functionalities to the BM5IV WR interface for more intuitive image control and connectivity.

• In the color category, the update adds a Before LUT Detection option in the Log Stops feature, an on-screen display of LUT files, separate switches for color calibration, and a color bar and hide chart option to the Log Stops UI.
• Additional control updates include an image flip function on the Function menu, dynamic range control in settings, and a One-to-Many Control system.
• Professional-grade monitoring tools also received an upgrade with adjustable length and thickness options, new color options, and a false color preset.
• Control is expanded for Sony cameras with the update. Wi-Fi control can be used with Sony FX6 and PXW-Z380 cameras. Wi-Fi and USB-C control is extended to Sony a7V and a9II cameras. Shutter angle and shutter speed switches can be performed with the Sony FX3, FX30, and FX2. Touch Focus Frame and Touch Focus Tracking Frame can be displayed from Sony cameras connected to the monitor via USB-C. White balance and color temperature control can be adjusted for all compatible Sony cameras.
• Other camera brands have also been given a boost. Automatic connection can be facilitated with RED DSMC2 cameras. Wi-Fi control can be used with Nikon ZR/Z8/Z9 and Canon C400/C80/C50/R1 cameras. Wi-Fi and USB-C control can be facilitated with Canon R5 II and R6 III models. The Panasonic GH7 has been added to the list of wired camera control compatibility.

The BM5IV WR uses three color gamuts to properly calibrate your image: 100% REC.709, 85% P3-DCI, and 85% P3-D65. You can manually select your Log mode, toggle Log false color, and select your own custom false color from 77 colors and 15 different segments. The monitor is factory calibrated with the option for users to create a 3D calibration LUT and an X-Rite color probe.

CINEFORM OS powers the monitor and allows you to configure settings to suit your workflow. Import two sets of custom color calibration files, create seven custom control pages, and save all to the included micro-USB drive for import to another monitor and streamline your workflow.

When taking in multiple camera signals via the HDMI and SDI input ports, you can select different dual-screen monitoring configurations to view both images simultaneously. Choose between horizontal to vertical crop, picture-in-picture, dual vertical, dual horizontal, and vertical/horizontal split views.

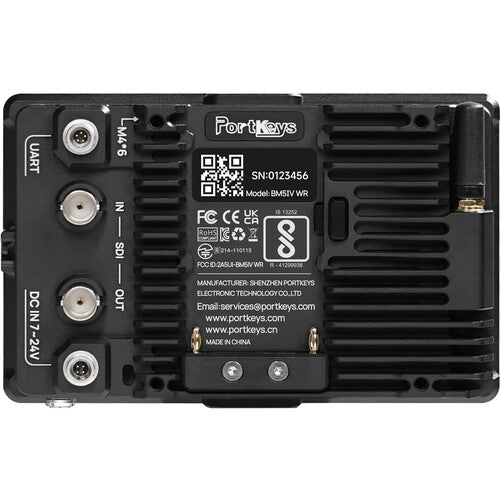

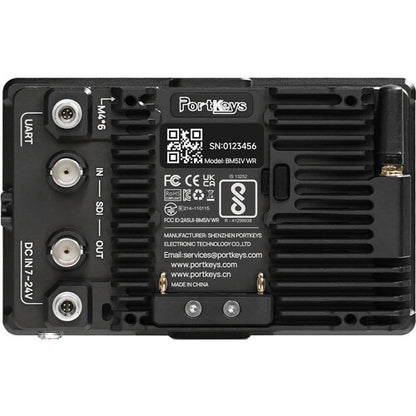

This upgraded BM5IV WR monitor features the same HDMI input, SDI input, and SDI output ports found on the previous model, with the addition of an HDMI output, allowing you to convert signals with ease. The HDMI ports can support up to 4K60 video, while the SDI ports can support up to 1080p60 video. A USB-A port helps facilitate firmware updates and uploads 3D LUTs to the monitor.

A micro-USB remote connection facilitates camera control with select camera models from RED, Sony, Blackmagic Design, Canon, Panasonic, and Z CAM using separately available cables. The BM5IV WR can also be used in tandem with your Tilta Nucleus N/M wireless focus system using its UART port for calibration and limit setting.

An included 2.4 GHz antenna facilitates wireless communication with select camera models. The BM5IV WR is RED-approved and can connect to KOMODO/V-RAPTOR cameras to change settings directly from the monitor and perform touch-to-focus in real time. Select Sony camera models also have touch focus capabilities and support zoom adjustment. The monitor can also wirelessly control the ARRI ALEXA Mini, Nikon Z8/Z9, Canon EOS R5/R6/R6 Mark II/R7/R8, and Panasonic BGH1/BS1H.

Use either the 2-pin LEMO port or the 4-pin interface and the included D-Tap cable to connect compatible power sources directly to the monitor. A built-in NP-F battery plate supports compatible batteries.

The monitor is constructed of durable aluminum alloy to withstand the rigors of production. The integrated fan can be set to switch to its lowest setting once the recording is toggled to minimize audio distortion.
