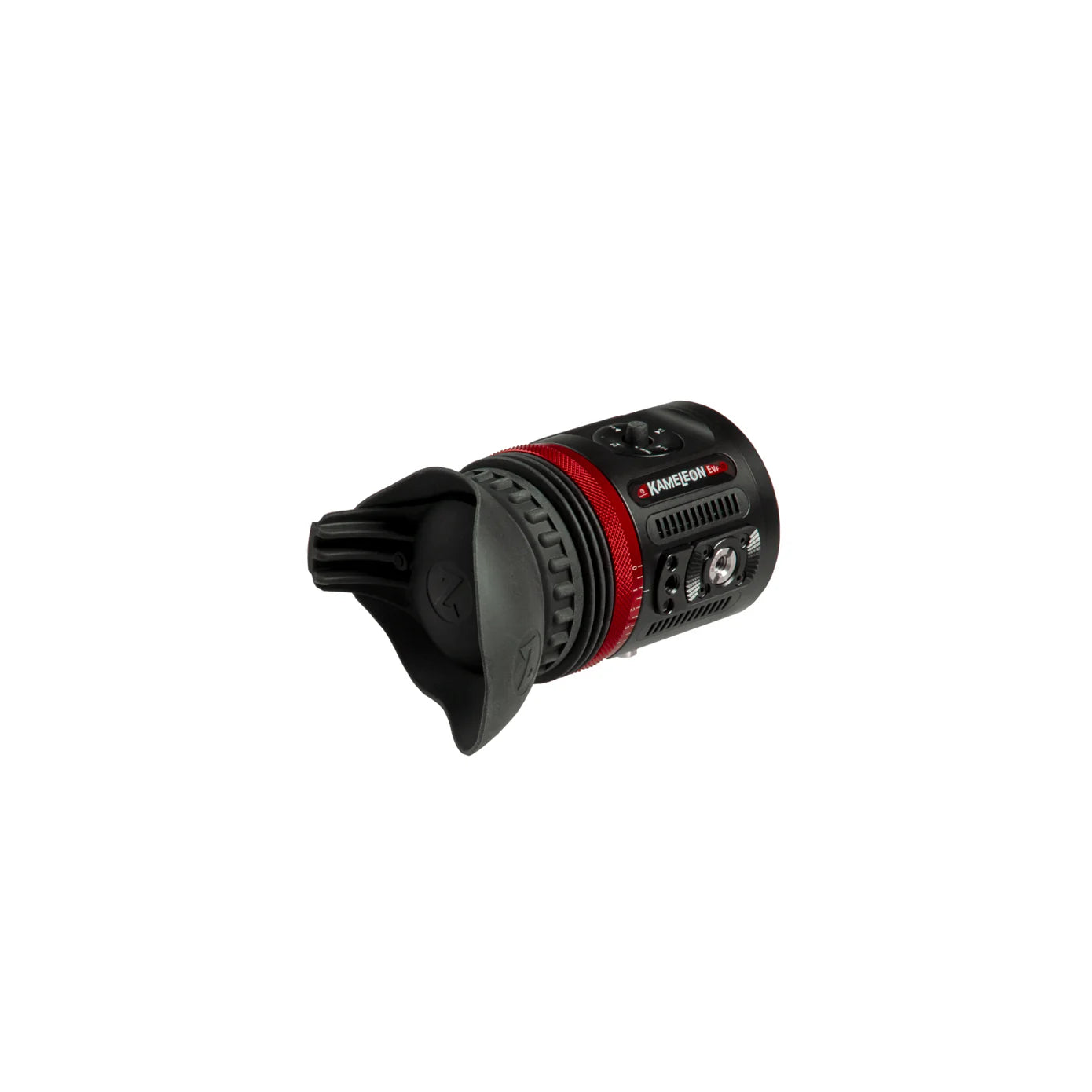

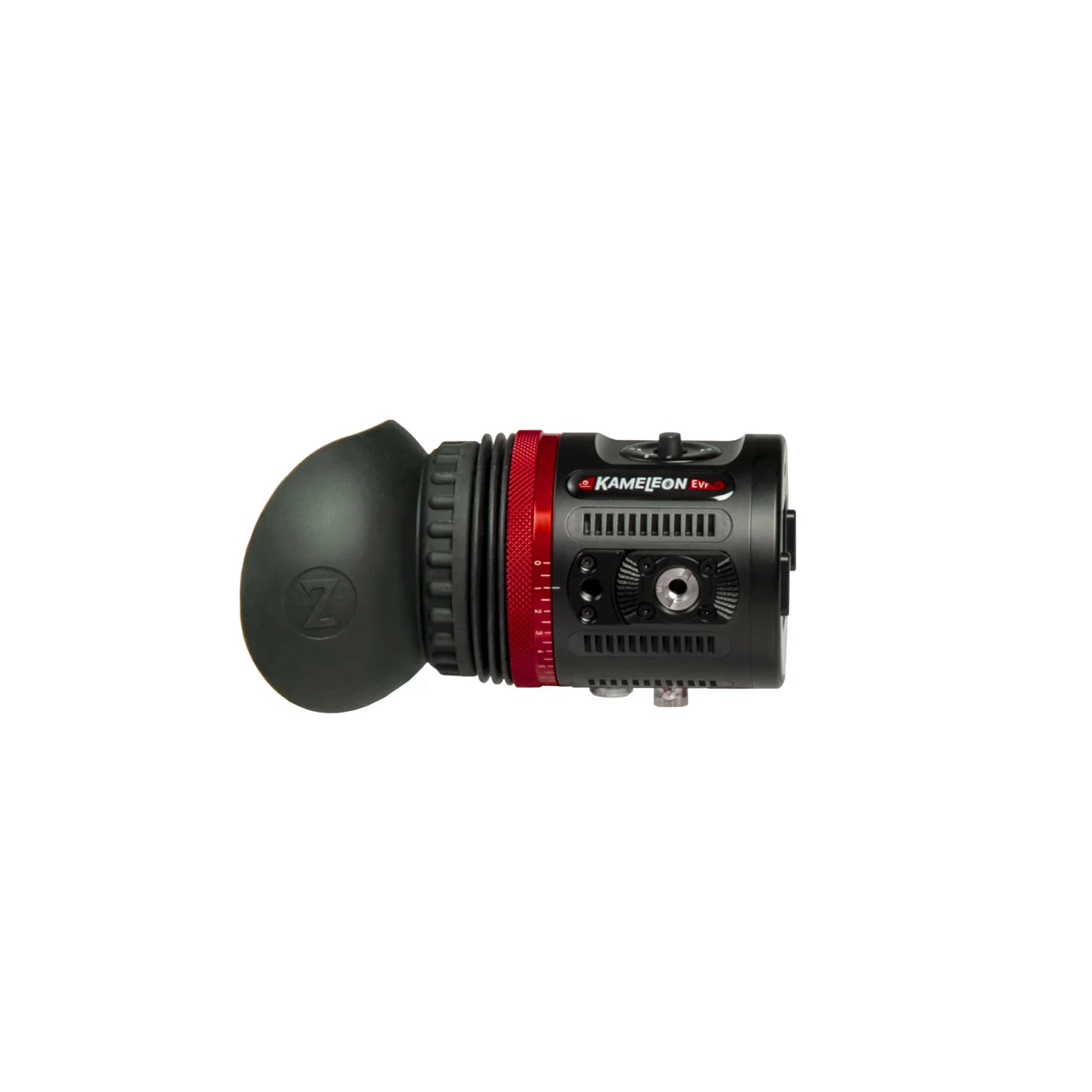

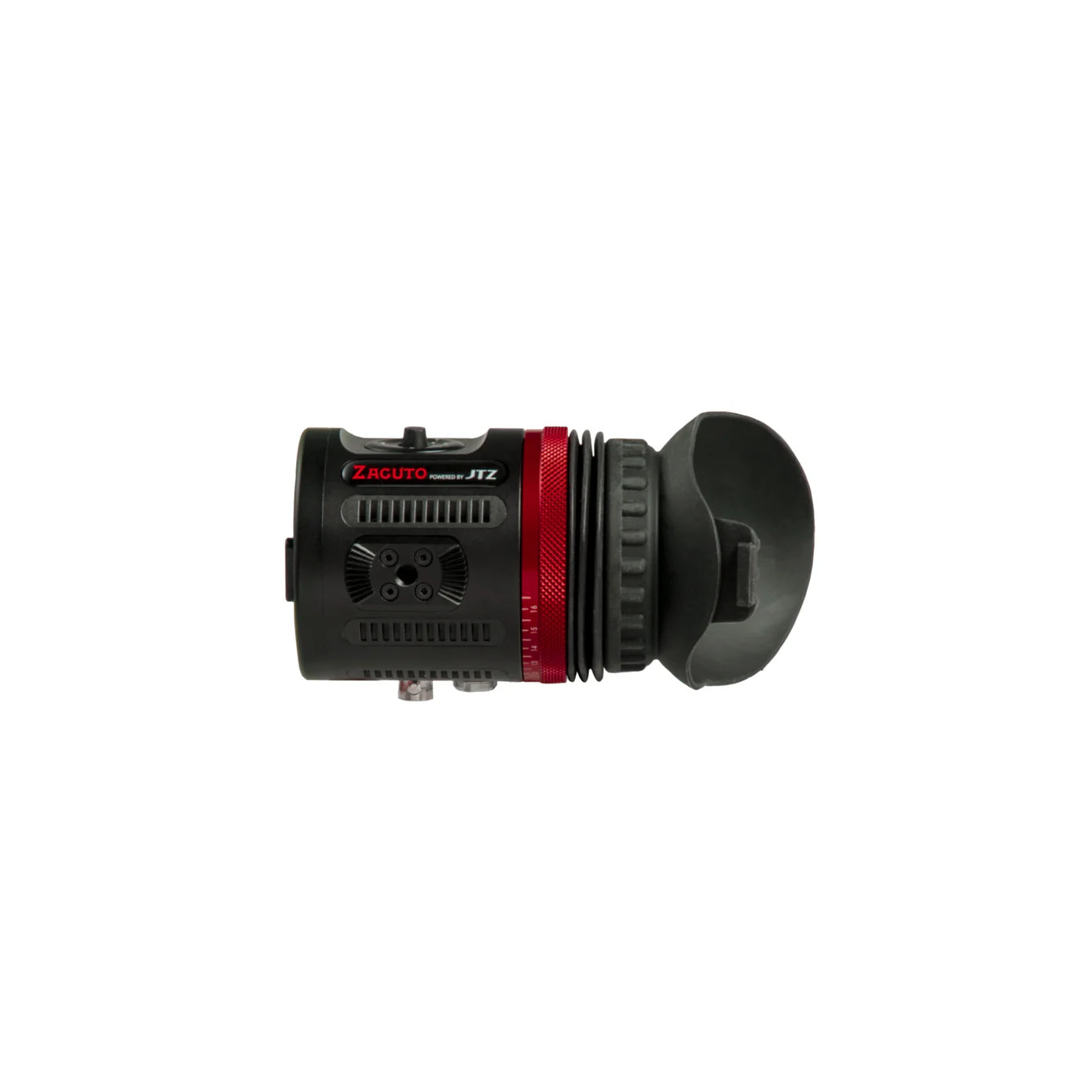

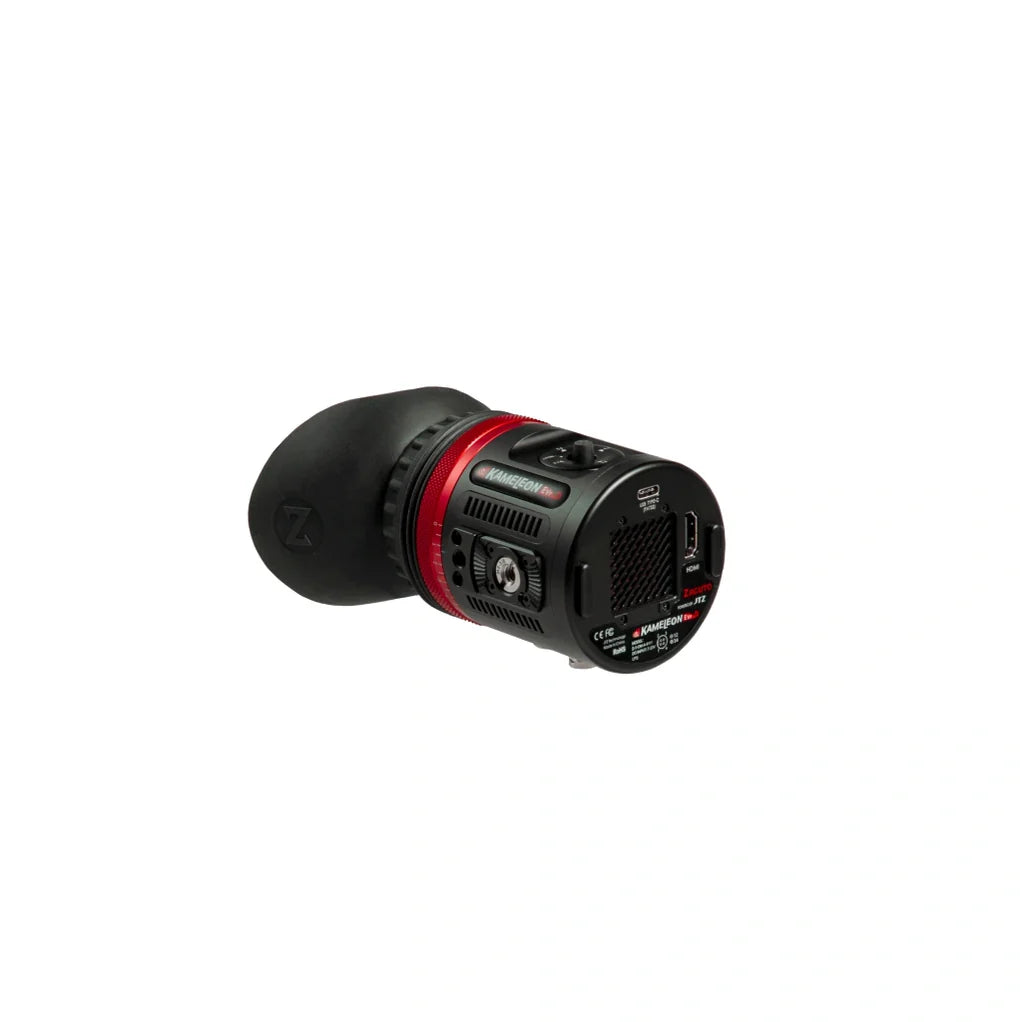

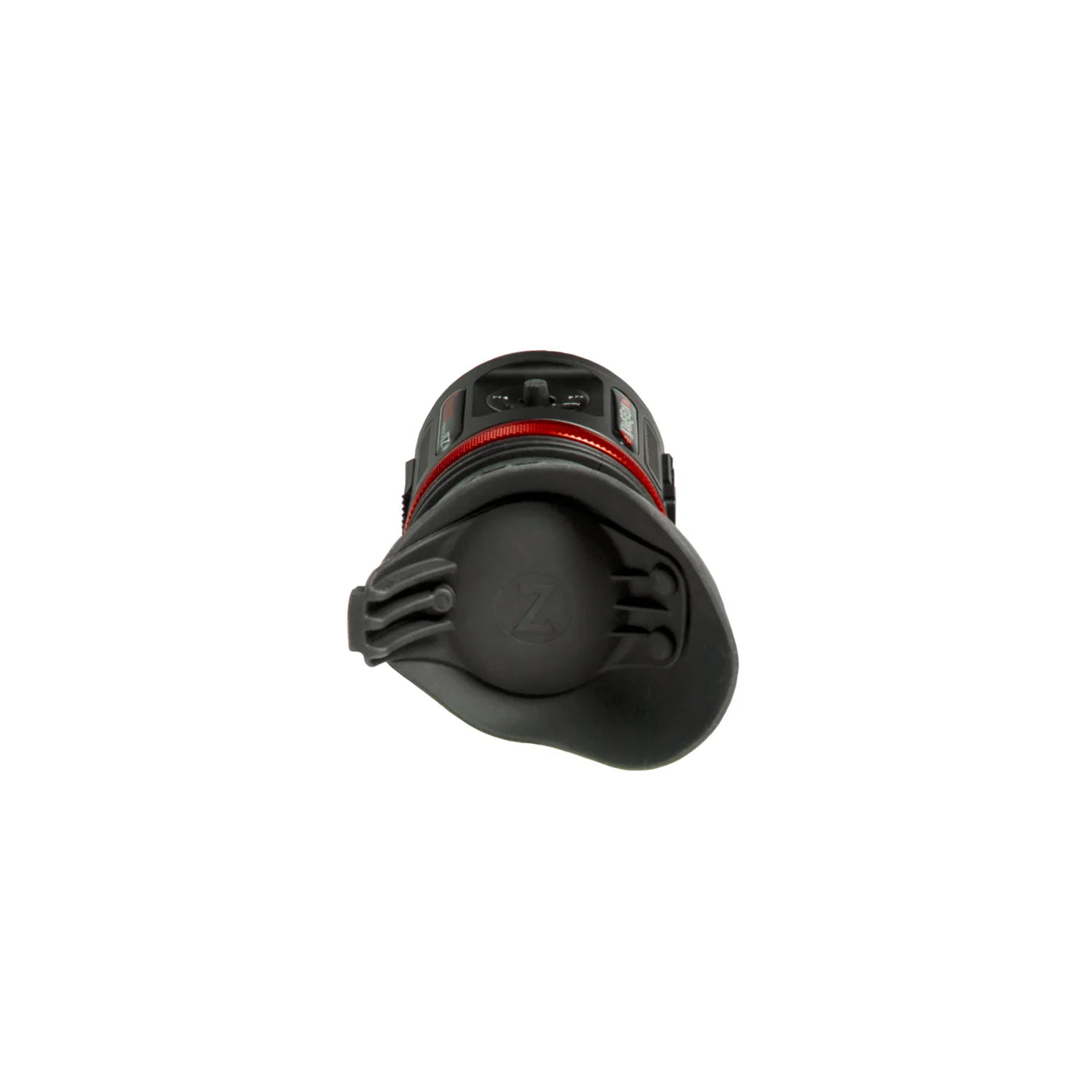

Kameleon Pro EVF

The ‘Powered by using JTZ’ Kameleon Pro EVF gives all the great capabilities of a expert EVF consisting of Waveform, Vectorscope, and a new display interface With this EVF we have an EVF for each taking pictures style. Kameleon differs from Graticals in providing a 4K HDMI enter downscaled to 1080P, and 3-D LUTS. Click right here for greater comparisons.

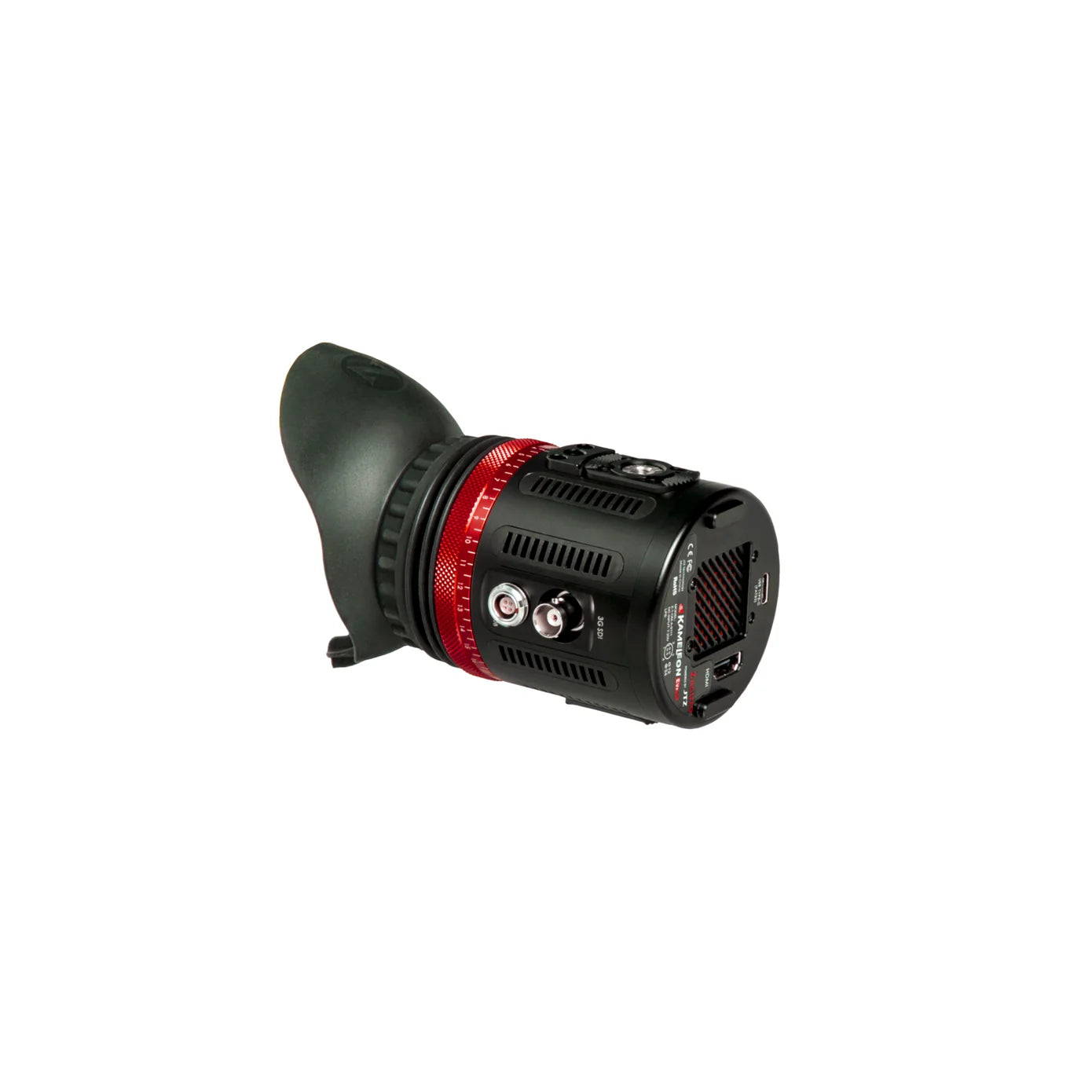

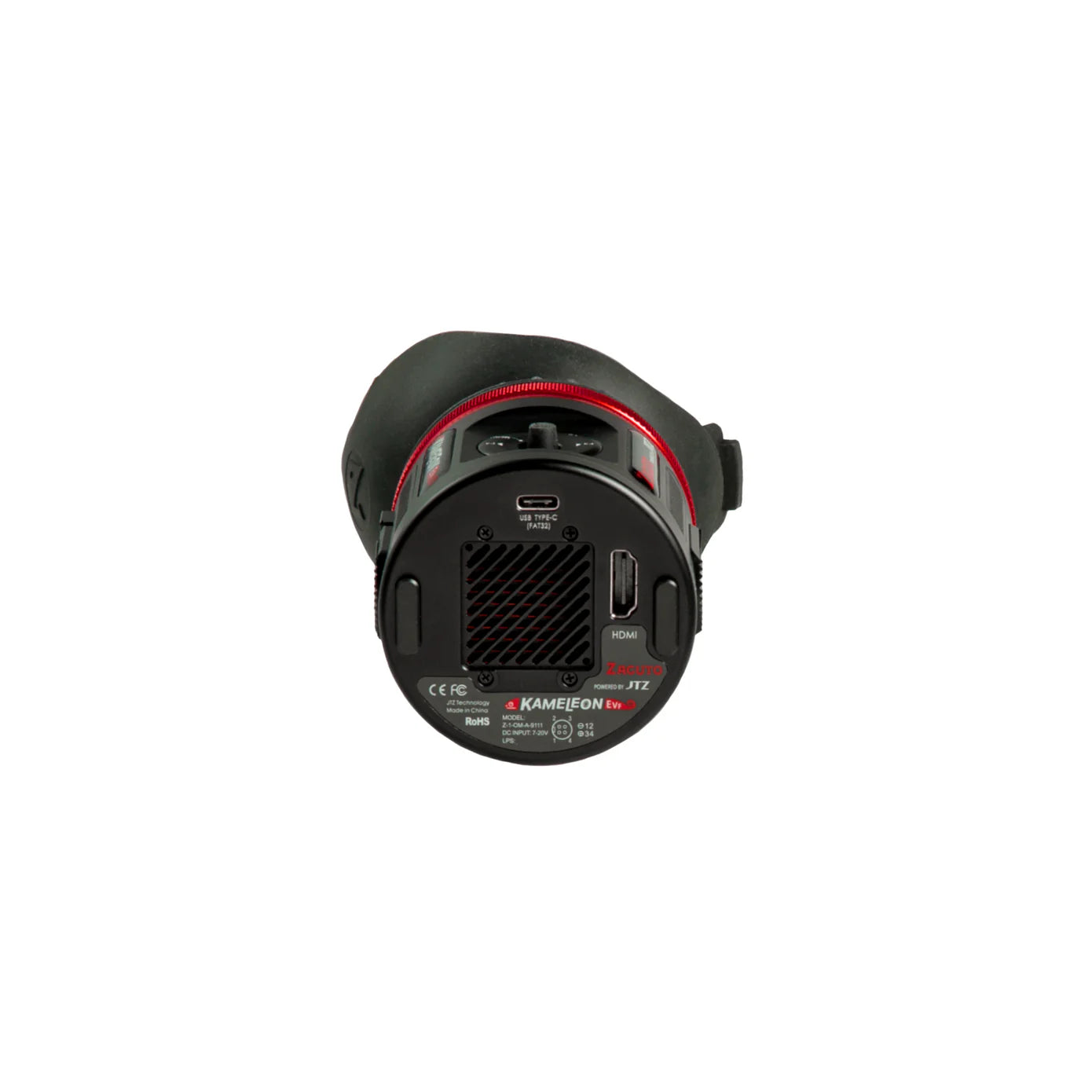

The Kameleon has a four pin Lemo power jack and one SDI and HDMI enter. (Please touch us before the use of a 3rd-party power cord, or check with the wiring diagram at the back of the Kameleon for compatibility.) To prevent this damage at the SDI output a, usually make certain to plug inside the electric connector first and then the BNC connector. Once the power and BNC cables are linked, it's miles OK to turn the camera or accent on or off. Also, ALWAYS make sure to disconnect the BNC cable first and then disconnect the energy cord.

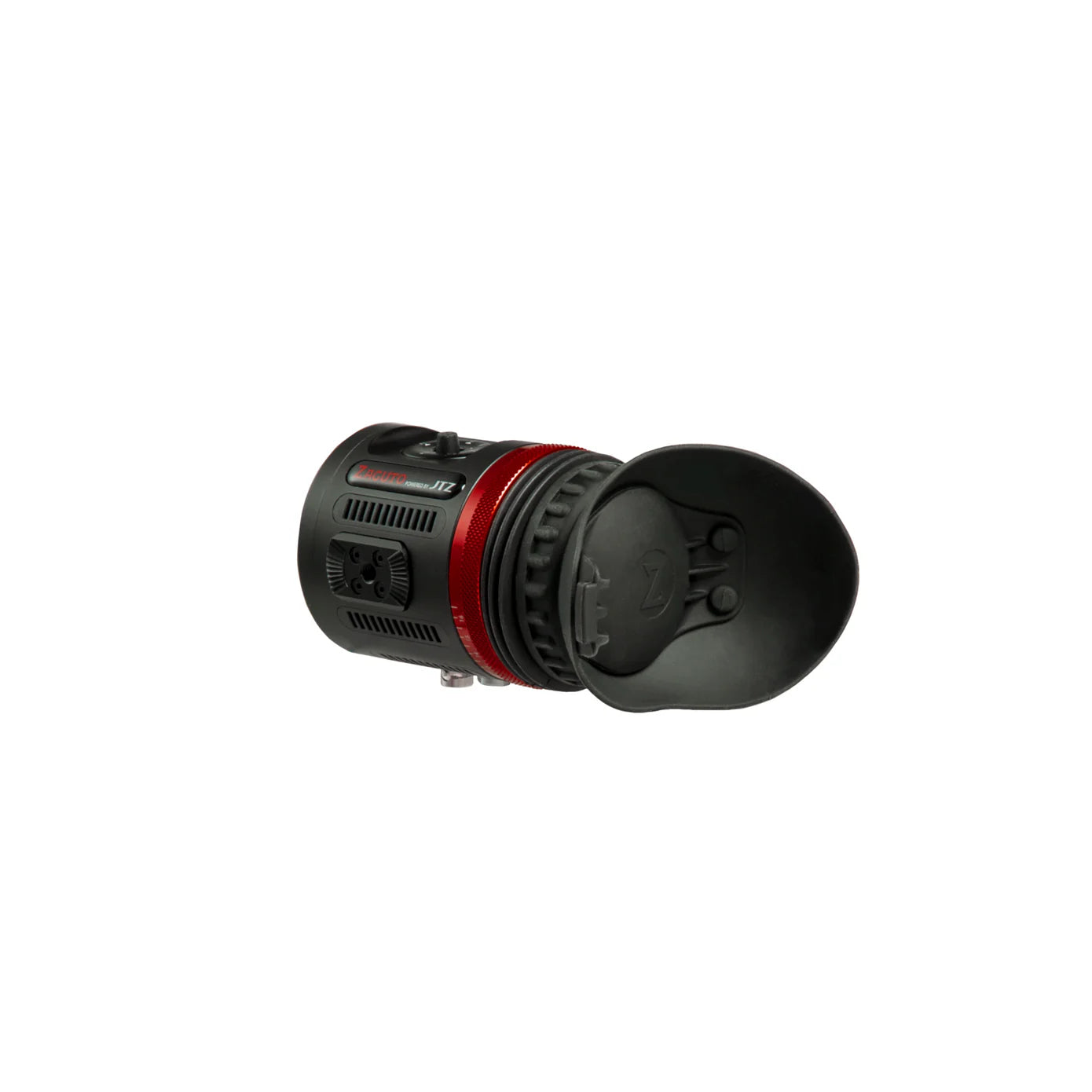

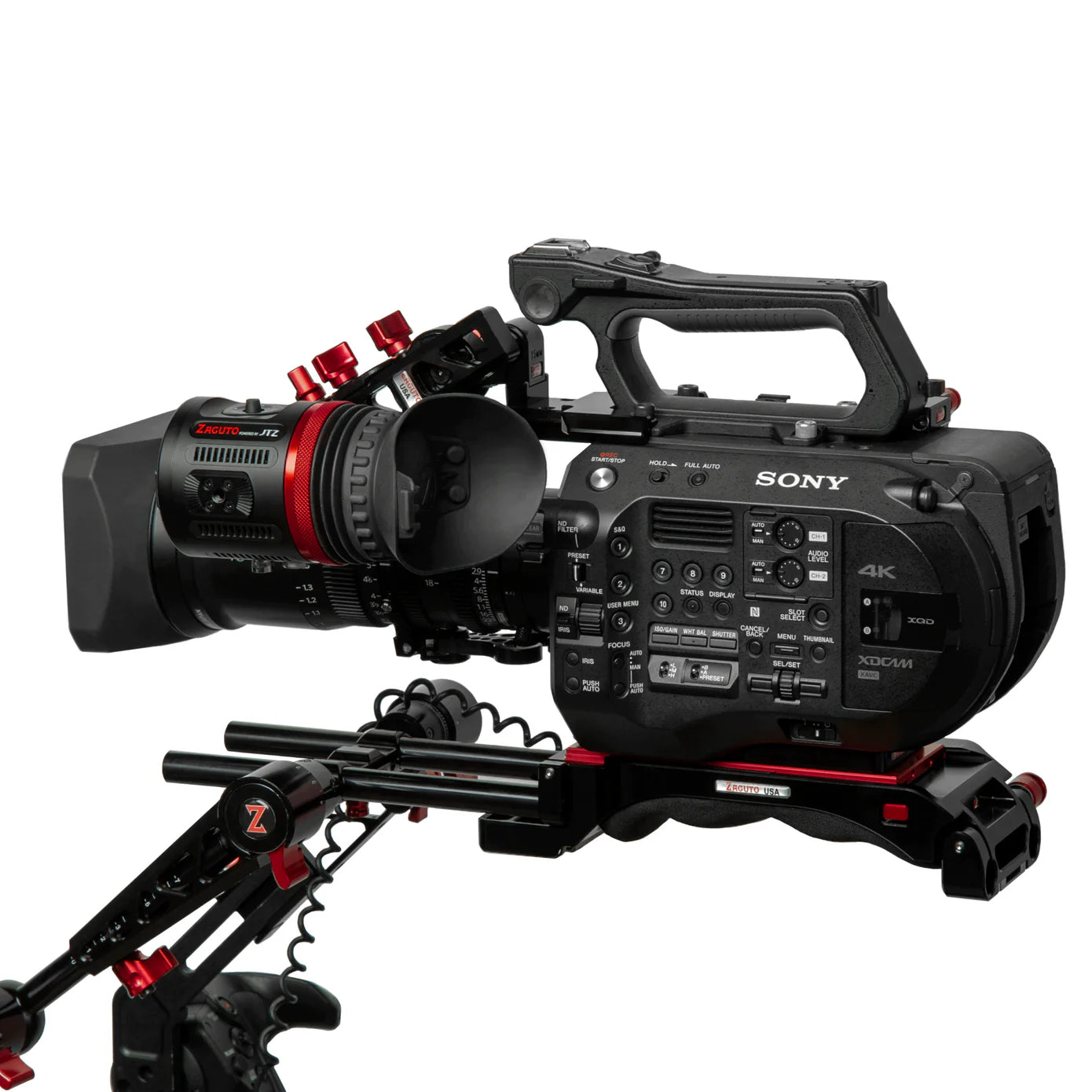

The Kameleon is the perfect EVF for Mirrorless and DSLR cameras and its SDI enter provides versatility so that you can apply it to a extensive variety of other cameras. Like all Zacuto EVFs, it has built-in -1 to 4 diopter levels and Zacuto’s patented crucial anti-fog coating formulation. Never darkish inside the warmness or freezing bloodless. A self-closing eyelet door helps defend your show from sunburn.

Tech assessment

Dimensions: 4.Nine”x 2.Seventy five” x 2.Eighty three”
Weight : 15 ounces

Micro-OLED Display:

Dimensions: 0.71” in the front
Contrast ratio: 10,000:1
Color intensity: 24-bit RBG
6.5 million pixels for prolonged sizes
Pixel Resolution - 3103 ppi

potential:
Power score: 7-20V
Power enter port: four LEMO 0B
Power intake: 5W

Combination of capabilities:

HDMI x1 is available
SDI x
USB-C x1 for LUT import
